FastenerType | Size Range* | Standard | Sample Image |
|---|---|---|---|

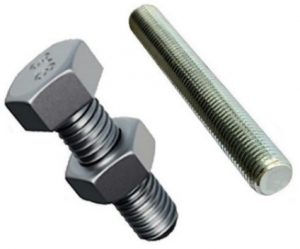

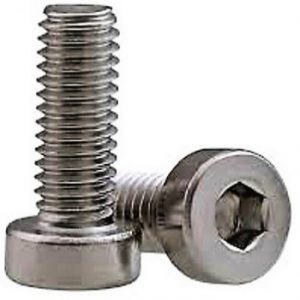

| Stud Bolt Hex Bolt Heavy Hex Bolt Allen Bolt | Metric threads: 4mm to 56mm in diameter, Length up to 300mm BSW Threads: 5/32" to 1 1/2" in Diameter, lengths up to 12" Plain, Plated, Galvanized | • ASTM standards including A193 B7, A193 B8/B8M, and A320, A354, A453, • ISO 4017 DIN 933 • DIN 975/976,A36M, A325M, A490M* & ISO 898 -1. • ASTM A574, A835, Series 1960, Metric Class 12.9, DIN 916/912, ISO4762 |   |

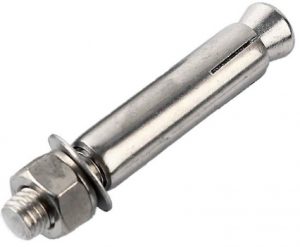

| Anchor Bolt | 6mm to 20mm in diameter, Length up to 300mm L-Shaped Anchor Bolts Double End Rods with Plate Headed Anchor Bolts Swedge Anchor Bolts | •ASTM F1554 A193 B7 A307 |  |

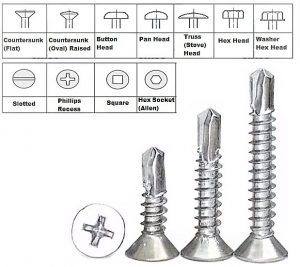

| Self Drilling Screws | 3.5 mm, 4.2 mm & 4.8 mm diameter available. Lengths 13 mm to 50 mm HEAD: Pan Phillips, Truss Head, Hex Head | •DIN 7504 ASME B18.6 |  |

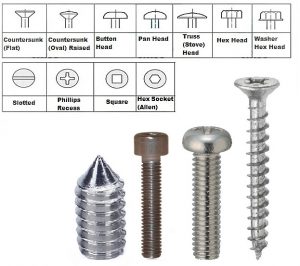

| Machine Screws | #5 - 3/4"; M3 – M20 Length:10-180mm (3/8”- 7”) Head type: Pan, Hex , Flat, Pan, Truss, Round, Hex washer, Oval, | •ASME/ANSI B18.6 ,DIN967, JIS B 1111, JIS B 1194, DIN964,DIN965,DIN7991,ISO7380,ISO7046, DIN912 |  |

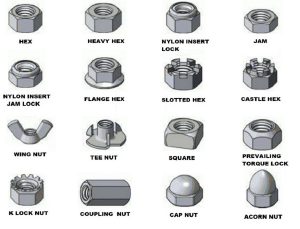

| NUTS | All Sizes for respective bolts | Hex Nut (Hexagon Nut) DIN 439/934/936, DIN 6330/6915, ISO 4032/33 /4166/ 8673 JIS,UNI, EN, ANSI/ASME B18.2.2, Slotted Hex Nut (Castle Nut) DIN935/937, JIS B1170, ANSI/ASME B18.2.2, ANSI/ASME B18.2.4.3M Hex Flange Nut DIN 6923/25/26/27/28 Nylon Insert Lock Hex Nut DIN985/982, DIN6924, Square Nut DIN 557/562/798, ANSI/ASME B18.10, ASME/ANSI B 18.2.2 Wing Nut DIN314/15/16, ASME/ANSI B 18.6.9 |  |

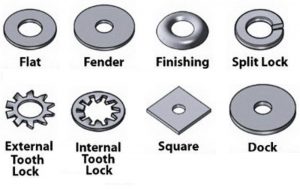

| Washer | All Sizes for respective bolts | •DIN127 Spring Washer asme b18.21.1 ASME B18.21.1 Washer gost6402 GOST 6402 Washer din125a flat washer Transhow Fasteners DIN125a Flat Washer din 9021 flat washer DIN9021 Flat Washer f436 washer F436 Flat Washer External / Internal Tooth Washer |  |
Fasteners Details :
Note :*Non Standards sizes and Other technical specifications can be provided upon request.
Materials Available:
• Ductile iron / Cast Iron
• Carbon steel and carbon alloys
• Austenitic Stainless steel including stabilized grades
•Martensitic Stainless Steel
•Ferritic – Austenitic Steel: Duplex and Super Duplex Steel
•Nickel and Nickel alloys
•Copper and Copper alloys
• Titanium metal and alloys
