Flange Type | Size Range* | Pressure Ratings/Class/Drilling | Sample Image |
|---|---|---|---|
Threaded Flange - BSP/NPT | ½” to 24” | •ANSI B16.5, ANSI B16.47 Series A and Series B #150, #300, #600, #900, #1500, #2500 •ISO 7005 (DIN) PN6, PN10, PN16, PN25, PN40 •AS 4087 and AS 2129 |  |

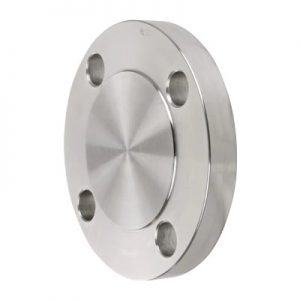

Blind Flange | ½” to 48” | •ANSI B16.5, ANSI B16.47 Series A and Series B #150, #300, #600, #900, #1500, #2500 •ISO 7005 (DIN) PN6, PN10, PN16, PN25, PN40 •AS 4087 and AS 2129 |  |
Socket weld Flange | ½” to 48” | •ANSI B16.5, ANSI B16.47 Series A and Series B #150, #300, #600, #900, #1500, #2500 •ISO 7005 (DIN) PN6, PN10, PN16, PN25, PN40 •AS 4087 and AS 2129 |  |

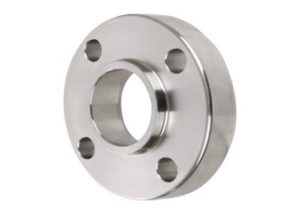

Slip On Flange | ½” to 48” | •ANSI B16.5, ANSI B16.47 Series A and Series B #150, #300, #600, #900, #1500, #2500 •ISO 7005 (DIN) PN6, PN10, PN16, PN25, PN40 •AS 4087 and AS 2129 |  |
Weld Neck Flange | ½” to 48” Sch 5 to Sch XXS | •ANSI B16.5, ANSI B16.47 Series A and Series B #150, #300, #600, #900, #1500, #2500 •ISO 7005 (DIN) PN6, PN10, PN16, PN25, PN40 •AS 4087 and AS 2129 |  |
Flanges Details :
Note :*Non Standards sizes and Other technical specifications can be provided upon request.
Materials Available:
• Ductile iron / Cast Iron
• Carbon steel and carbon alloys
• Austenitic Stainless steel including stabilized grades
•Martensitic Stainless Steel
•Ferritic – Austenitic Steel: Duplex and Super Duplex Steel
•Nickel and Nickel alloys
•Copper and Copper alloys
• Titanium metal and alloys
By Process specifications:
• Forged and Casted Flanges
